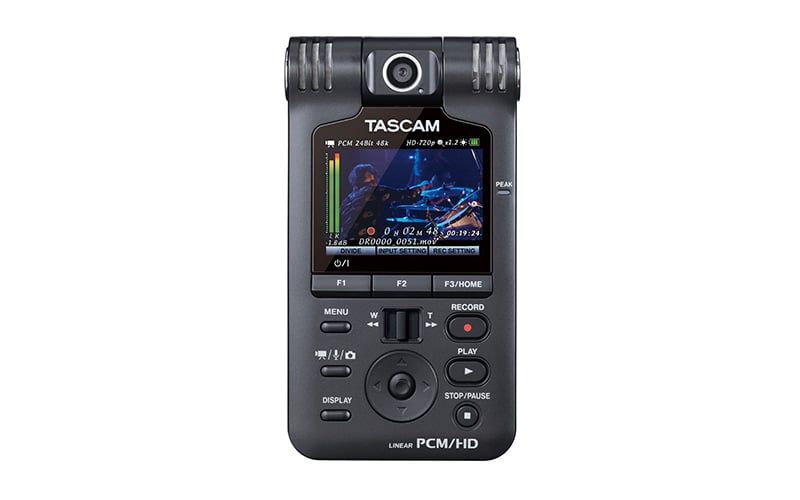

TASCAM DR-V1HD MÁY QUAY VIDEO/LINEAR PCM
Đã bán 1
4,500,000₫
-38%
7,200,000₫
Đã bán hết
Mua Combo Giá Rẻ Hơn
Thông tin sản phẩm
THÔNG SỐ KỸ THUẬT
| Recording Media | microSD/microSDHC-card |
| File System | FAT32,FAT16 |
| Video Format | MOV |
| Video | |
| Video Compression Method | MPEG-4 SP |
| Resolution | SD:640 x 480 / 30fps HD:1280 x 720 / 30fps |
| Audio | |
| Recording Format | WAV |
| Sampling Frequency | 44.1kHz / 48kHz |
| Bit Rate | 16bit,24bit |
| Audio Format | WAV |
| Sampling Frequency | 44.1kHz / 48kHz / 96kHz |
| Bit Rate | 16bit,24bit |
| Still Picture Format | JPEG |
| Size | 0.3M:640 x 480 0.9M:1280 x 720 |
| Number of Channels | |
| Video/Photo | 1 |
| Audio | 2(Stereo) |
| Built-In Camera | |
| Image Sensor | 1/4-inch CMOS |
| Focal Length | 39cm - ∞ |
| Digital Zoom | 1.0x - 4.0x |
| F Value | F2.8 |
| White Balance | AUTO / BULB LIGHT / FL LIGHT / STAGE LIGHT/ SUN LIGHT/ CLOUDY |
| Built-In Microphone | Electret condenser microphone x 2(Stereo) |
| Polar Pattern | Cardioid |
| Maximum SPL | 120dB SPL |
| Open circuit Voltage | -37dB at 1kHz(0dB=1V/Pa)RL=2kΩ、Vcc=3V |
| Impedance | 1.4kΩ+/-30% at 1kHz(RL=2kΩ) |
| S/N Ratio | 74dB Typ. at 1kHz(A-Weight) |
| Analog Audio Input/Output | |
| MIC IN / LINE IN | Plug-in power |
| Connector | 3.5mm(1/8") Stereo mini jack |
| MIC IN | IINPUT SELECT set to MIC |
| Impedance | 25kΩ |
| Input Level | |
| GAIN LOW | -32dBV |
| GAIN MID | -48dBV |
| GAIN HI | -64dBV |
| Maximum Input Level | |
| GAIN LOW | -16dBV |
| GAIN MID | -32dBV |
| GAIN HI | -48dBV |
| LINE IN | INPUT SELECT set to LINE |
| Impedance | 22Ω |
| Input level | -10dBV(0.32V) |
| Minimum Input Level | -22dBV(0.08V) |
| Maximum Input Level | +6dBV(2.0V) |
| Phones / LINE OUT | |
| Connector | 3.5mm(1/8") Stereo mini jack |
| Impedance | 12Ω |
| Output Level | 14dBV(10kΩ) |
| Maximum Output Level | +2dBV(10kΩ) |
| Maximum Output | 15mW + 15mW(32Ω) |
| LCD Monitor | |
| Size | 2.4" Color TFT LCD |
| Resolution | 240 x 320 |
| Backlight | HIGH / LOW / ALL OFF |
| Built-in Speaker | 0.6W,Monaural |
| USB | |
| Connector | Mini-B |
| Format | USB2.0 HIGH SPEED Mass Storage Class |
| HDMI | |
| Connector | miniHDMI(Type C) |
| Tripod Mounting Thread | 1/4-inch |
| Power Supply | Three AA batteries (Alkaline or Ni-MH) TASCAM PS-P520 AC adaptor (sold separately) |
| Power Consumption | 0.9W (Maximum) |
| Dimensions | 70(W)×131(H)×28(D)mm |
| Weight | 157g (Batteries not included) |
| Operating temperature range | 0 - 35℃ |
| Accessories | 2GB microSDHC card, Mini USB Cable, 3 "AA" Batteries |
| Audio performance | |
| Frequency response | 20Hz - 20kHz +1/-3dB(44.1kHz、LINE IN→LINE OUT、JEITA) 20Hz - 22kHz +1/-3dB(48kHz、LINE IN→LINE OUT、JEITA) 20Hz - 42kHz +1/-3dB(96kHz、LINE IN→LINE OUT、JEITA) |
| THD | 0.02% or less(44.1k / 48k / 96kHz、LINE IN→LINE OUT、JEITA) |
| S/N比 | 90dB or more(44.1k / 48k / 96kHz、LINE IN→LINE OUT、JEITA) |
| Conditions of the PC to connect | |
| Windows | |
| OS | Windows XP,Windows Vista,Windows 7,Windows 8 |
| CPU | Pentium 300MHz or more |
| Memory | 128MB or more |
| USB | USB2.0 recommended |
| Macintosh | |
| OS | Mac OS X Jaguar (V10.2),Mac OS X Panther (V10.3),Mac OS X Tiger (V10.4),Mac OS X Leopard (V10.5),Mac OS X Snow Leopard(V10.6.8),OS X Lion(V10.7),OS X Mountain Lion(V10.8) |
| CPU | Power PC、iMac、G3、G4 、G5 266MHz or more |
| Memory | 64MB or more |
| USB | USB2.0 recommended |
| Battery operation time (continuous) |
| Operation and file format | Continuous operation time (approximate) | Note | |
| Alkaline type battery (EVOLTA) | Ni-MH type battery (eneloop) | ||
| Recording HD-720p video with 48kHz, 24-bit audio | 3.5 hours | 4.5 hours | Using built-in stereo microphone and headphones |
| Recording SD-VGA video with 44.1kHz, 16-bit audio | 4.5 hours | 5.5 hours | Using built-in stereo microphone and headphones |
| Playing HD-720p video with 48kHz, 24-bit audio | 4.5 hours | 5 hours | Using headphones |
| Playing SD-VGA video with 44.1kHz, 16-bit audio | 5.5 hours | 6 hours | Using headphones |
| Recording 96kHz, 24-bit audio | 5 hours | 5.5 hours | Using built-in stereo microphone and headphones |
| Recording 44.1kHz, 16-bit audio | 6 hours | 6.5 hours | Using built-in stereo microphone and headphones |
| Playing 96kHz, 24-bit audio | 6 hours | 5 hours | Using headphones |
| Playing 44.1kHz, 16-bit audio | 6.5 hours | 6 hours | Using headphones |
Note: times for music recording and playback measured using JEITA methods
| Recording durations |
The table below shows maximum recording times in hours and minutes on microSD/microSDHC cards of different capacities for different recording bit rates and sampling frequencies.
| Operating mode | File recording format settings | microSD/microSDHC card capacity | |||||
| 2GB | 4GB | 8GB | 16GB | 32GB | |||
| Video mode | 16bit SD-VGA (STEREO) | 44.1kHz | 1:01 | 2:00 | 4:01 | 8:03 | 16:07 |
| 48kHz | 0:58 | 1:57 | 3:55 | 7:50 | 15:40 | ||
| 24bit SD-VGA (STEREO) | 44.1kHz | 0:52 | 1:44 | 3:28 | 6:56 | 13:53 | |
| 48kHz | 0:50 | 1:40 | 3:21 | 6:42 | 13:24 | ||
| 16bit HD-720p (STEREO) | 44.1kHz | 0:28 | 0:56 | 1:53 | 3:46 | 7:33 | |
| 48kHz | 0:28 | 0:55 | 1:51 | 3:43 | 7:27 | ||
| 24bit HD-720p (STEREO)) | 44.1kHz | 0:26 | 0:52 | 1:45 | 3:30 | 7:01 | |
| 48kHz | 0:25 | 0:51 | 1:43 | 3:27 | 6:54 | ||
| Audio mode | 16-bit WAV (STEREO) | 44.1kHz | 3:09 | 6:13 | 12:35 | 25:11 | 50:23 |
| 48kHz | 2:53 | 5:47 | 11:34 | 23:08 | 46:17 | ||
| 96kHz | 1:26 | 2:53 | 5:47 | 11:34 | 23:08 | ||
| 24-bit WAV (STEREO) | 44.1kHz | 2:06 | 4:12 | 8:23 | 16:47 | 33:35 | |
| 48kHz | 1:55 | 3:51 | 7:43 | 15:25 | 30:51 | ||
| 96kHz | 0:57 | 1:55 | 3:51 | 7:43 | 15:25 | ||
•The recording times shown above are estimates. These values may differ depending on the microSD/microSDHC card used.
•The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the microSD/microSDHC card.
DR-V1HD Tested media List
| Last update:September 30, 2015 |
| Maker | Series | Model | Capacity | Result |
| SanDisk | SanDisk Extreme PRO® microSDHC™ UHS-I Memory Card (U3, Class10) | SDSDQXP-032G-J35A | 32GB | OK |
| SDSDQXP-016G-J35A | 16GB | OK | ||
| SanDisk Extreme® microSDHC™ UHS-I Memory Card (U3, Class10) | SDSDQXL-032G-J35A | 32GB | OK | |
| SDSDQXL-016G-J35A | 16GB | OK |
| Maker | Series | Model | Capacity | Result |
| SanDisk | SanDisk Extreme Pro® microSDHC™ UHS-I card (Class10) | SDSDQXP-016G-J35 | 16GB | OK |
| SDSDQXP-008G-J35 | 8GB | OK | ||
| SanDisk Extreme microSDHC™UHS-I Card (Class10) | SDSDQX-032G-J35A | 32G | OK | |
| SDSDQX-016G-J35A | 16G | OK | ||
| SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Cards (Class10) | SDSDQUP-016G-J35A | 16GB | OK | |
| SDSDQUP-008G-J35A | 8GB | OK | ||
| SanDisk Ultra® microSDHC™ UHS-I Memory Cards (Class10) | SDSDQUL-016G-J35A | 16GB | OK | |
| SDSDQUL-008G-J35A | 8GB | OK | ||
| SDSDQU-032G-J35A | 32G | OK | ||
| SDSDQU-016G-J35A | 16G | OK | ||
| SDSDQU-008GB-J35A | 8GB | OK | ||
| SanDisk Mobile Ultra™ microSDHC™ UHS-I card (Class6) | SDSDQY-032G-J35A | 32GB | OK | |
| SDSDQY-016G-J35A | 16GB | OK | ||
| SDSDQY-008G-J35A | 8GB | OK | ||
| SDSDQY-004G-J35A | 4GB | OK | ||
| SanDisk Standard microSD™/microSDHC™ card | SDSDQ-032G-J35A | 32G | OK | |
| SDSDQ-016G-J35A | 16G | OK | ||
| SDSDQ-008G-J35A | 8G | OK | ||
| SDSDQ-004G-J35A | 4G | OK | ||
| SDSDQ-002G-J35A | 2G | OK | ||
| Lexar | Lexar® High-Performance microSDHC™ UHS-I Cards (600x) (Class10) | LSDMI32GBBJP600R | 32GB | OK |
| LSDMI16GBBJP600R | 16GB | OK | ||
| Lexar® High-Performance Mobile Solution microSDHC™ Cards (Class10) | LSDMI32GBBJPR | 32GB | OK | |
| LSDMI16GBBJPR | 16GB | OK | ||
| LSDMI8GBBBJPR | 8GB | OK | ||
| LSDMI32GBCJPRC10 | 32G | OK | ||
| Lexar® High-Performance Mobile Solution microSDHC™ Cards (Class6) | LSDMI16GBCJPR | 16G | OK | |
| LSDMI8GBBCJPR | 8G | OK | ||
| Lexar® microSDHC™ Cards (Class6) | LSDMI16GABJPC6 | 16GB | OK | |
| LSDMI8GBABJPC6 | 8GB | OK | ||
| Lexar® Standard microSDHC™cards | LSDMI32GABJP | 32GB | OK | |
| LSDMI4GBABJP | 4GB | OK | ||
| LSDMI16GACJP | 16G | OK | ||
| LSDM18GBACJP | 8G | OK | ||
| LSDM14GBACJP | 4G | OK | ||
| Lexar®Super Value microSD™/microSDHC™ cards | LSDMI4GBASVDJP | 4G | OK | |
| LSDMI2GBASVDJP | 2G | OK | ||
| Panasonic | Premium microSDHC™ UHS-I Card (Class10) R:45MB/s | RP-SMGA32GJK | 32G | OK |
| RP-SMGA16GJK | 16G | OK | ||
| RP-SMGA08GJK | 8G | OK | ||
| RP-SMGA04GJK | 4G | OK | ||
| microSDHC™ card(Class10) | RP-SM16GEJ1K | 16G | OK | |
| RP-SM08GEJ1K | 8G | OK | ||
| RP-SM04GEJ1K | 4G | OK | ||
| microSDHC™ card (Class4) R:10MB/s | RP-SMFB32GJK | 32G | OK | |
| RP-SMFB16GJK | 16GB | OK | ||
| RP-SMFB08GJK | 8GB | OK | ||
| RP-SMFB04GJK | 4GB | OK | ||
| microSDHC™ card(Class4) | RP-SM32GFJ1K | 32G | OK | |
| RP-SM16GFJ1K | 16G | OK | ||
| RP-SM08GFJ1K | 8G | OK | ||
| RP-SM04GFJ1K | 4G | OK | ||
| microSDHC™ card (Class4) R:10MB/s | RP-SMFB02GJK | 2GB | OK | |
| microSD™ card(Class4) | RP-SM02GFJ1K | 2G | OK |
